Thermal & Optical Bi-spectrum Network Bullet Camera
+ KDV
1
Thermal & Optical Bi-spectrum Network Bullet Camera
New

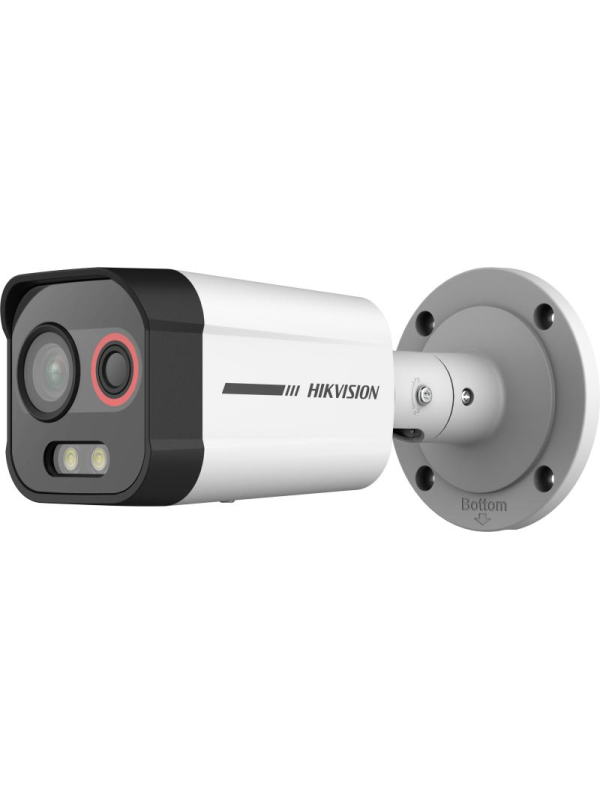

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera
- 96 × 72 resolution, 12 μm, VOx UFPA, NETD < 55 mK (25°C, F1.0)
- Temperature exception alarm for fire prevention, -20°C to 300°C (-4°F to 572°F)
- Fire and smoking detection algorithm
- High-quality detector with 10-year warranty
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
DS-2TD2608-1/QA/FP| Camera Features | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays, 1/1.8" Progressive Scan CMOS |
| Aralık | F1.0 |
| Shutter Speed | 1 s to 1/100,000 s |
| WDR | 120 dB |
| Video Compression Format | H.265/H.264 |
| Camera | |
| Camera Type | Bullet |
| Digital Zoom | ×2, ×4 |
| Spectral Range | 8 μm to 14 μm |
| Network | |
| Protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,SSL |
| Image | |
| Resolution | 96 × 72 2688 × 1520 |
| Interface Unit | |
| Audio Compression Format | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarm Input/ Output | 2/2 |
| General Features | |
| Power Supply | 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Protection Standard | IP67, IK10 |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Dimension | 211.5 mm × 105 mm × 105 mm (8.32" × 4.13" × 4.13") |
| Weight | 869.2 g (1.92 lb) |
| IFOV | 8.89 mrad |
| NETD | <55 mK (25°C, F1.0) |
| Pixel Pitch | 12 μm |
